Motor 12v X9 Superwinch| Enlarge
  • Motor 12 volt 20 tooth spline|

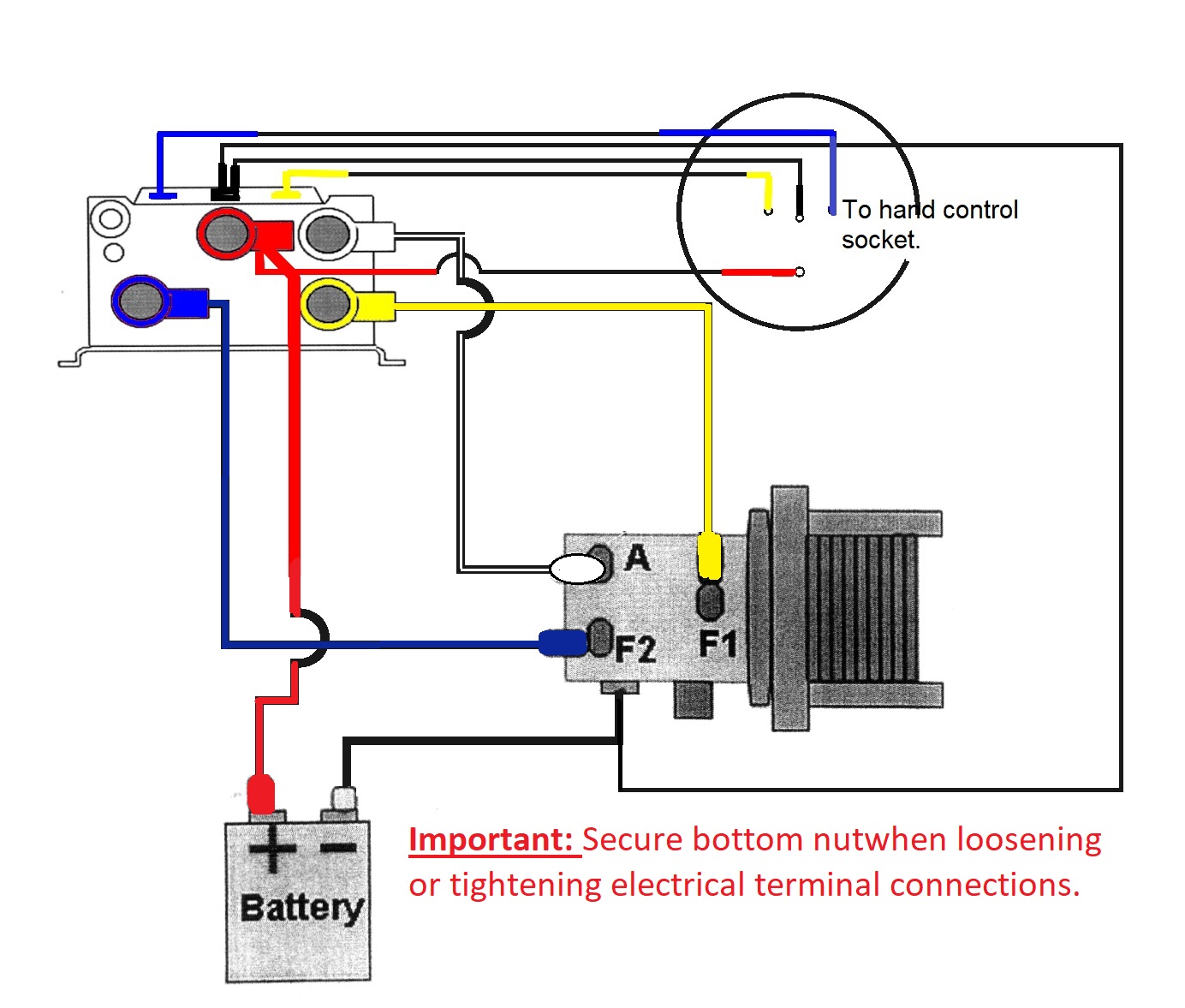

  • Motor wiring diagram|Wiring diagram for Series wound winch motor

Motor X9 sale clearance

Winch Replacemnt Motor 12 Volt

Genuine "MAHLE" Iskra 4.2hp

Suits Superwinch X9, Husky & 20 tooth Warn XD, M, High Mount

Special reduced price on limited stock

$195.00 plus gst

This is a genuine "MAHLE" replacement motor as used in manufacturing by Superwinch on the X9 and S9000 series winches. A 4.2hp 12 volt series wound high start torque motor made in Slovenia by Iskra a world leader in motor technology and always quality assured.

The 12 volt motor part No 90-33333 is the current generation motor with internal brush earthing and latest motor sealing as used on Superwinch X9 and Toyota X9 9000lb winch kit model 1901T & 1901TA. It is also suitable for the Superwinch Husky industrial 12 volt.

This series wound high torque Iskra motor will also fit a variety of 4wd winches with 20 tooth spline including Warn XD, M & High Mount.

A special discounted price is only available on remaining stock and is up to a $300.00 saving off of original price.

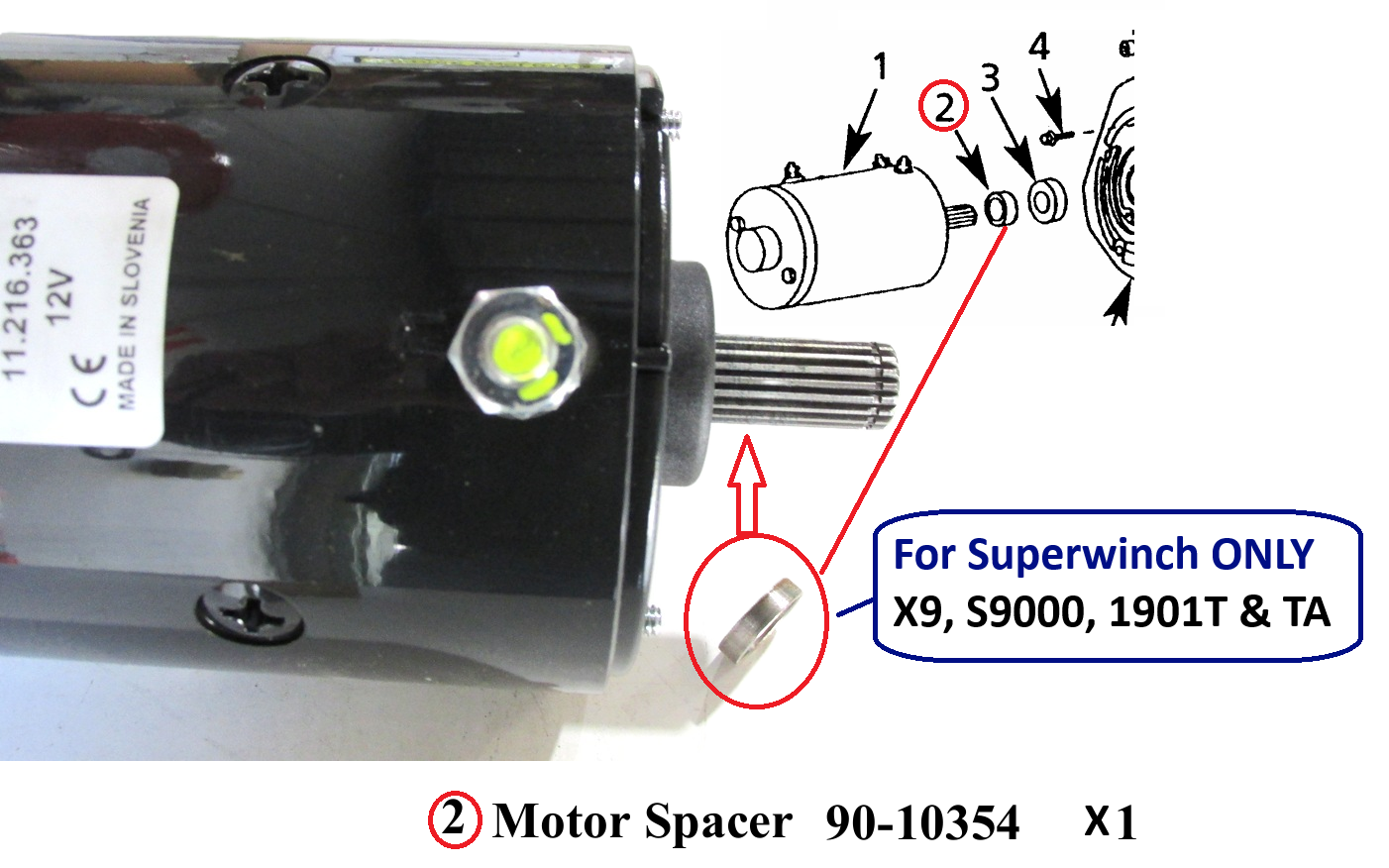

Important: The Superwinch X9 and Husky will have a spacer ring fitted on the original motor spline. It is important to retain this spacer when replacing a motor and it is to be slipped onto the new motor spline. A replacement spacer if needed is available for these model winches.
