Powermaster 20K Ramsey

Ramsey Powermaster 20K

20000 lb (9072 kg) Planetary hydraulic winch

Ramsey Powermaster series 20K hydraulic planetary winch, built strong to industrial standard SAE J706

The Ramsey Powermaster 20K (9072kg ) planetary hydraulic winch with two stage heavy duty oil lubricated gear assembly at ratio 21:1 with high torque hydraulic motor. This provides for higher speed high load retrieval at 12 metres p/min 1st layer at maximum flow. With a large barrel cast iron drum to maximise rope carrying capacity at 61 meters and a hydraulic release spring applied brake with load control valve for safety.

Features include an option of manual lever or internal pneumatically activated free-spool for rapid manual cable payout and a heavy duty guide roller as standard and comes mounted to the winch.

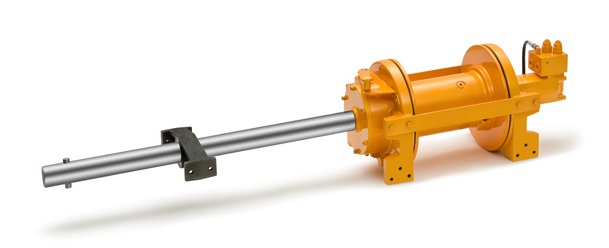

A special forward order only not on current stock item, is a capstan head with bayonet attachment driven from an extended shaft through the winch gearbox. Refer to attachment download for more information.
